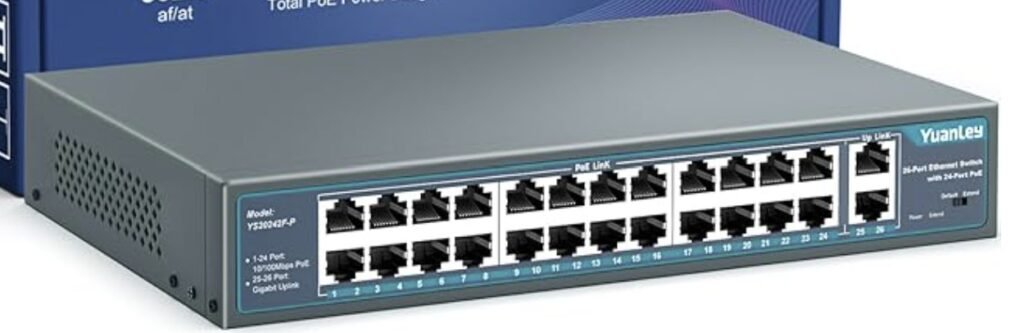

If you’re setting up a home office, small business network, or IP surveillance system and need a cost-effective switch with Power over Ethernet, the Yuanley 24-Port Unmanaged PoE Switch is a great entry-level solution. It offers a simple plug-and-play setup with robust PoE capabilities, suitable for powering IP cameras, VoIP phones, and access points.
Key Features
- 24 Gigabit Ethernet Ports with PoE (10/100/1000 Mbps)
- 2 Gigabit Uplink Ports for router or switch connectivity
- Total PoE Budget: 250W | Up to 30W per port
- Compliant with IEEE 802.3af/at (PoE/PoE+) standards
- Unmanaged: No configuration required
What Is PoE?
PoE (Power over Ethernet) allows a network switch to deliver both data and electrical power through the same Ethernet cable. The Yuanley switch supports 802.3af (15.4W) and 802.3at (30W), ideal for devices like wireless access points and HD security cameras.
Performance & Port Configuration
- Speed Per Port: 1 Gbps
- Ports: 24x PoE-enabled Gigabit RJ45, 2x non-PoE uplink ports
- Switching Capacity: 52 Gbps (estimated based on port speed and density)
- Forwarding Rate: ~38.7 Mpps (typical for this category)
Power Interface
- Total Power Budget: 250W
- Power Per Port: Up to 30W
- Connector Type: Standard IEC C13
- Cable: ~5 ft included
- External Power Supply with adequate thermal management
Design & Build
- Color: Black with blue accents
- Material: Metal chassis
- Cooling: Built-in fans for temperature control
- Mounting: Rack-mount and desktop options (rack ears included)
- Dimensions: 17.3 x 8.3 x 1.75 inches (1U rack size)
Ideal Use Cases
- Small to Medium IP Camera Systems
- VoIP Phone Networks
- Wireless Access Point Deployments
- Budget-conscious Business Networks
What We Like
- Generous PoE power budget at a low price
- Simple plug-and-play operation
- No setup required
What We Don’t Like
- No management features like VLAN or QoS
- Fan can be slightly noisy in quiet environments
Final Thoughts
The Yuanley 24-Port PoE Switch is ideal for users looking for an affordable, high-capacity PoE solution without advanced configuration needs. Its combination of PoE+ support, gigabit speed, and basic reliability make it a smart buy for entry-level network installations.
