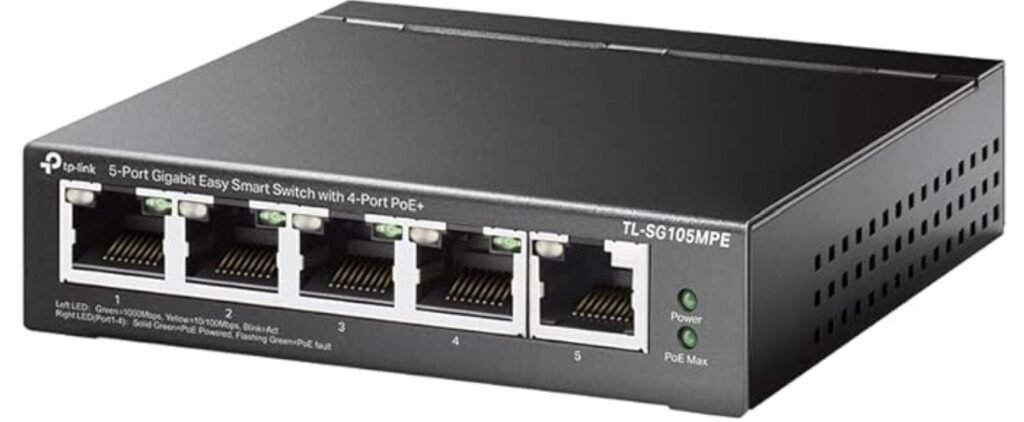

The TP-Link TL-SG105MPE is a compact and robust 5-port Gigabit smart switch that supports Power over Ethernet Plus (PoE+), making it ideal for powering IP cameras, VoIP phones, or wireless access points directly through Ethernet cables. It’s a smart switch, offering essential features like VLAN, QoS, and port management—all wrapped in a solid metal housing.
Key Features
- 5 Gigabit Ethernet Ports (4 PoE+ Ports)
- 802.3af/at PoE Support (PoE+), 65W Total Power Budget
- Basic Management: VLAN, QoS, Port Mirroring, IGMP Snooping
- Plug-and-Play with Smart Control via Web Interface
- Switching Capacity: 10 Gbps | Forwarding Rate: 7.44 Mpps
Terminology Explained
- PoE (Power over Ethernet): Lets the switch power connected devices like IP cameras or phones over Ethernet cables.
- VLAN (Virtual LAN): Segments the network for better security and traffic management.
- QoS (Quality of Service): Prioritizes critical traffic such as VoIP calls or video streams.
Power & Interface
- Power Interface: External 100–240V AC adapter
- Power Connector: Barrel plug
- Power Cable: ~4.9 ft
- PoE Budget: 65W total; up to 30W per port (IEEE 802.3af/at compliant)
Design & Build
- Color: Matte black
- Material: Solid metal
- Cooling: Fanless for silent operation
- Dimensions: 6.2 × 3.9 × 1.0 in (158 × 99 × 25 mm)
Ideal Use Cases
- Small Office/Home Office (SOHO) setups with limited power outlets
- Surveillance systems using IP cameras
- Wireless deployments needing compact PoE switches for APs
What We Like
- Compact design with solid build
- Integrated PoE+ for powering up to 4 devices
- Smart features for traffic control and monitoring
- Fanless and silent
What We Don’t Like
- Lacks advanced Layer 3 features
- No PoE passthrough for daisy-chaining
Final Thoughts
The TP-Link TL-SG105MPE is an excellent option for small environments needing power and control in one device. It simplifies setups by eliminating separate power adapters for PoE-enabled devices, while its smart features add flexibility and control without the complexity of fully managed switches.
