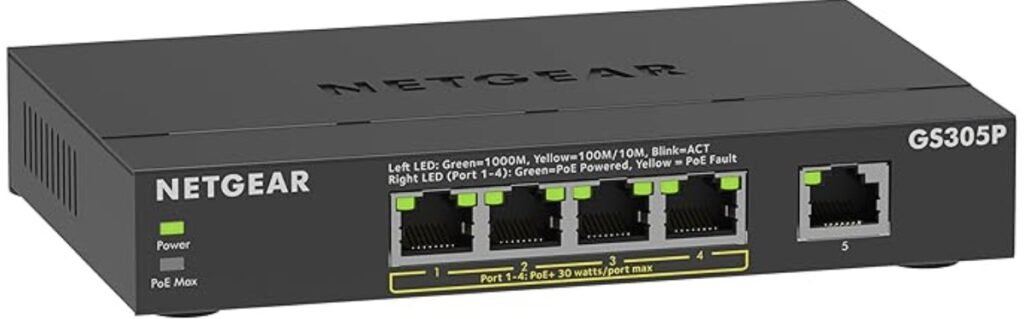

The NETGEAR GS305P is a 5-port unmanaged gigabit Ethernet switch designed to deliver power and data to devices like IP cameras, VoIP phones, and wireless access points without the need for additional power supplies. Featuring Power over Ethernet Plus (PoE+), this compact metal switch provides basic networking with effortless installation.
Key Features
- 5 Gigabit Ports, with 4 PoE+ Ports (802.3af/at)
- Total PoE Power Budget: 63W, up to 30W per PoE+ port
- Switching Capacity: 10 Gbps | Forwarding Rate: 7.4 Mpps
- Unmanaged Plug-and-Play Operation
Terminology Explained
- PoE (Power over Ethernet): Sends power and data over the same cable to simplify cabling and device setup.
- Unmanaged Switch: Offers no configuration interface or options—ideal for users who want automatic plug-and-play simplicity.
Ports & Power
- Ports: 5x RJ45 Gigabit (4 PoE+ enabled)
- PoE Standards: IEEE 802.3af/at
- Power Input: External 54V DC adapter
- Power Connector: Barrel plug
- Power Cord Length: Approx. 5 ft
Design & Build
- Color: Black
- Material: Metal
- Cooling: Fanless for silent operation
- Dimensions: 3.9 x 3.9 x 1.1 in (100 x 100 x 28 mm)
Ideal Use Cases
- Home Offices or Small Businesses deploying IP cameras or VoIP
- Wireless Access Point installations where power outlets are limited
What We Like
- Simple and quick setup
- PoE+ power delivery is generous for the price
- Metal body offers durability
- Silent operation
What We Don’t Like
- No smart features or VLAN support
- External power brick instead of internal power supply
Final Thoughts
For those seeking an entry-level PoE+ switch that just works, the NETGEAR GS305P fits the bill. With enough power to run up to four PoE-enabled devices, it’s a solid choice for anyone needing to simplify their network setup with minimal effort.
